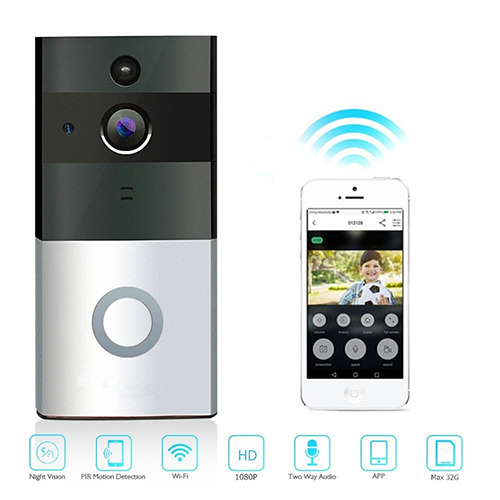

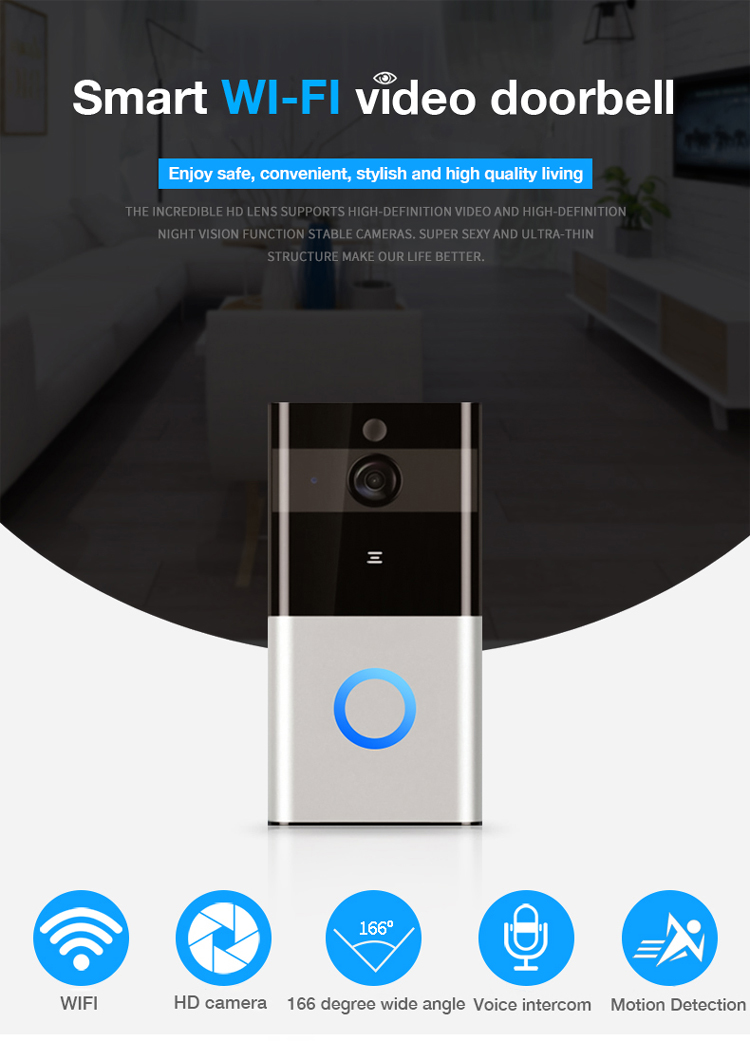

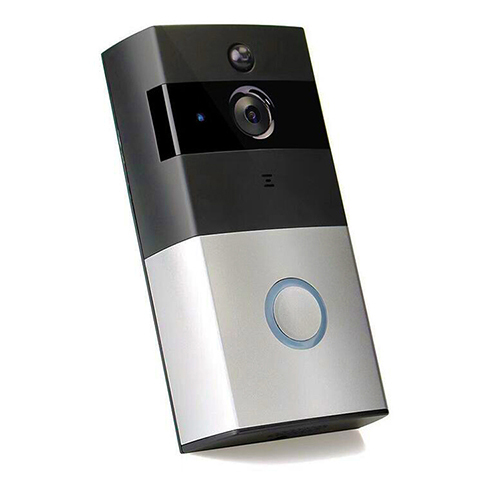

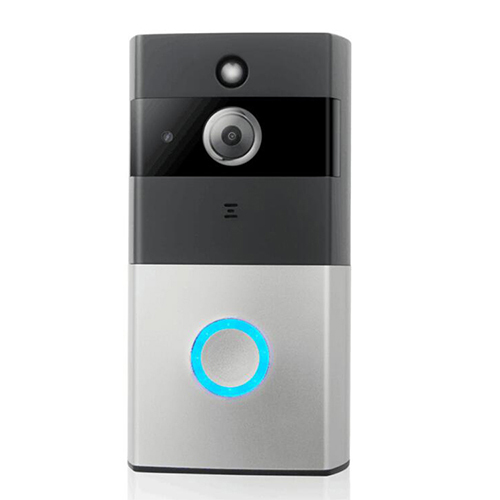

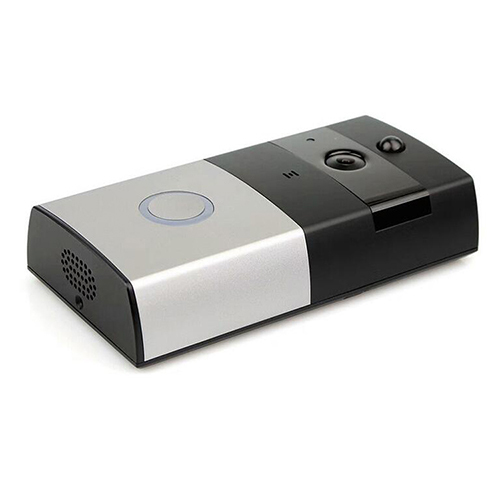

VD-M1 WIFI Wireless Doorbell

Item No.: VD-M1
VD-M1 WIFI Wireless Doorbell is one-lock private mould.default app is XSH Cam,and tuya wifi is optional.It has 2 color,white and black and grey.
Description Packing List
VD-M1 WIFI Wireless Doorbell

VD-M1 WIFI Wireless Doorbell is one-lock private mould.default app is XSH Cam,and tuya wifi is optional.It has 2 color,white and black and grey.


1. HD Quality Image With 166° Wide Angle View: This doorbell contains a 1.7mm lens with 720p
(1080P optional) imageand 166° wide angle view. You can see clearly who your visitors are from it.

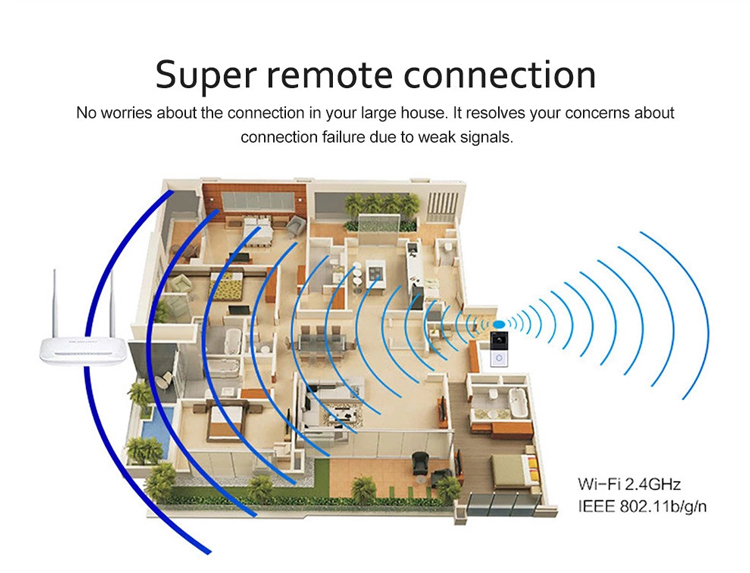

2. 2.4GHz Wi-Fi Connection Supported: This doorbell can connect to your home’ s Wi-Fi, it keeps your doorbell
always online.Then you can see and talk to your visitor at anytime and anywhere.

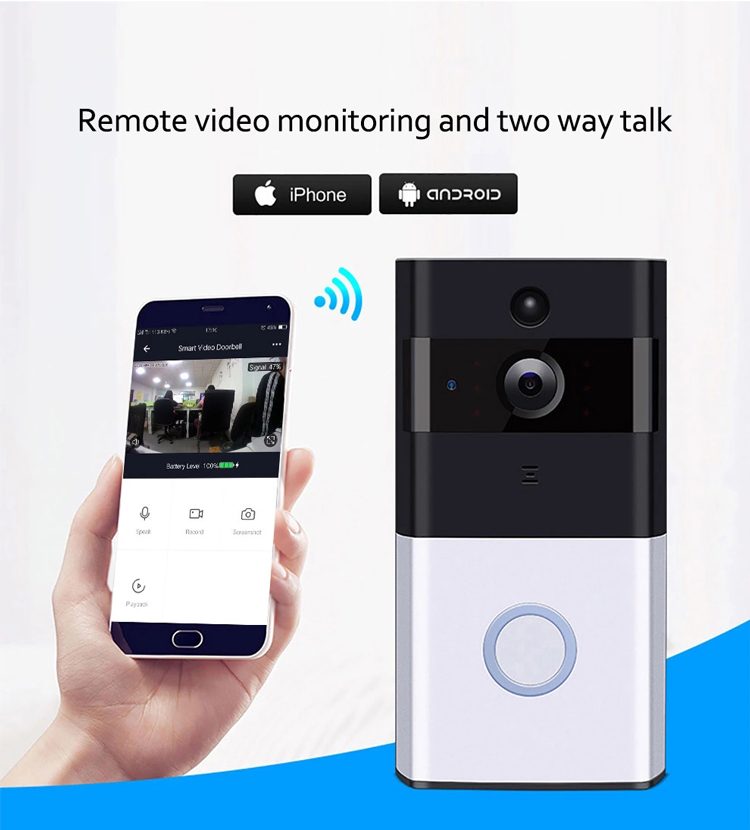

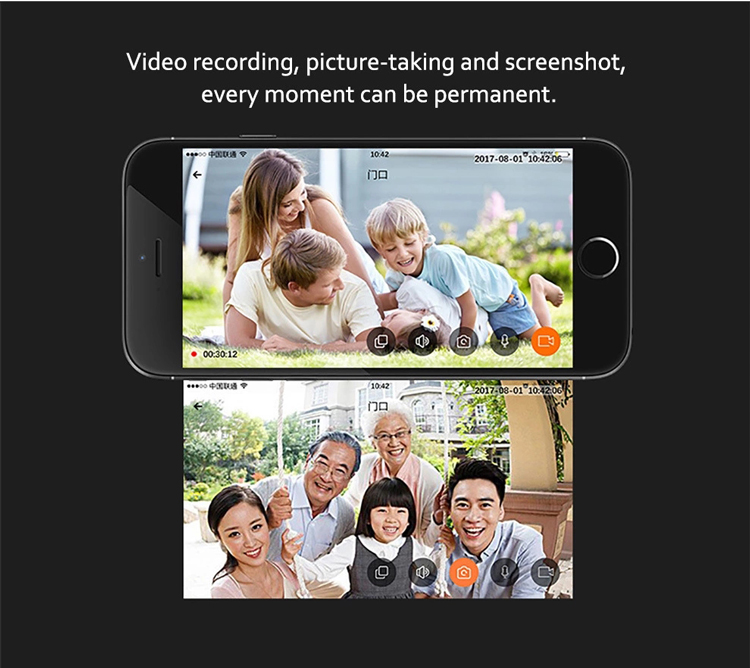

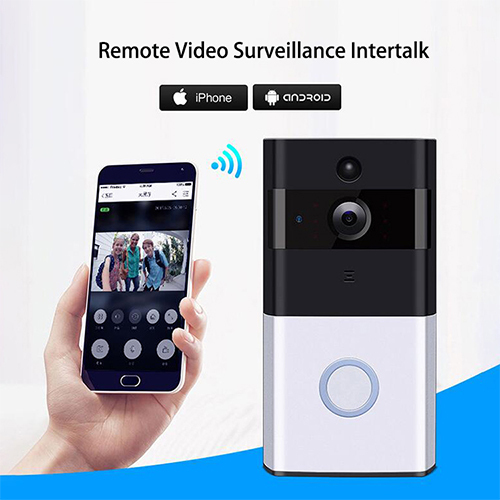

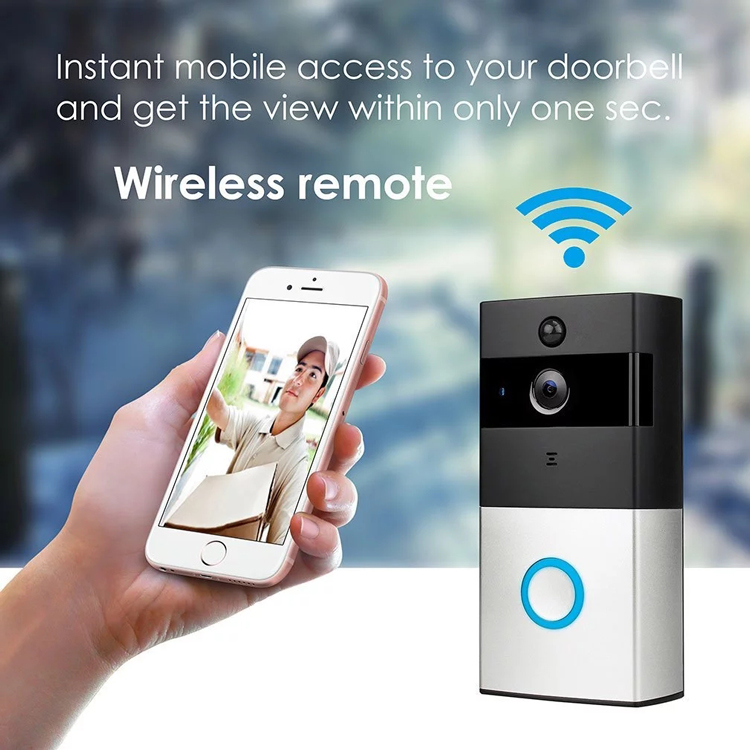

3. Remote Viewing: When the doorbell be pressed, a ring alert message will be sent to your phone, you can
see a real-timevideo and talk to your visitors from your phone wherever you are.

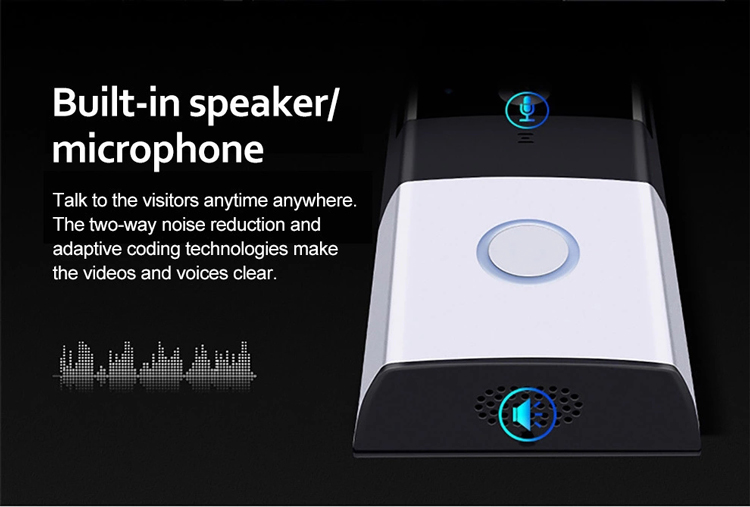

4. Clear Two-way Audio: The two-way audio is clear with echo removal and noise cancellation technology,
so that you cantalk and hear clearly with your visitors.

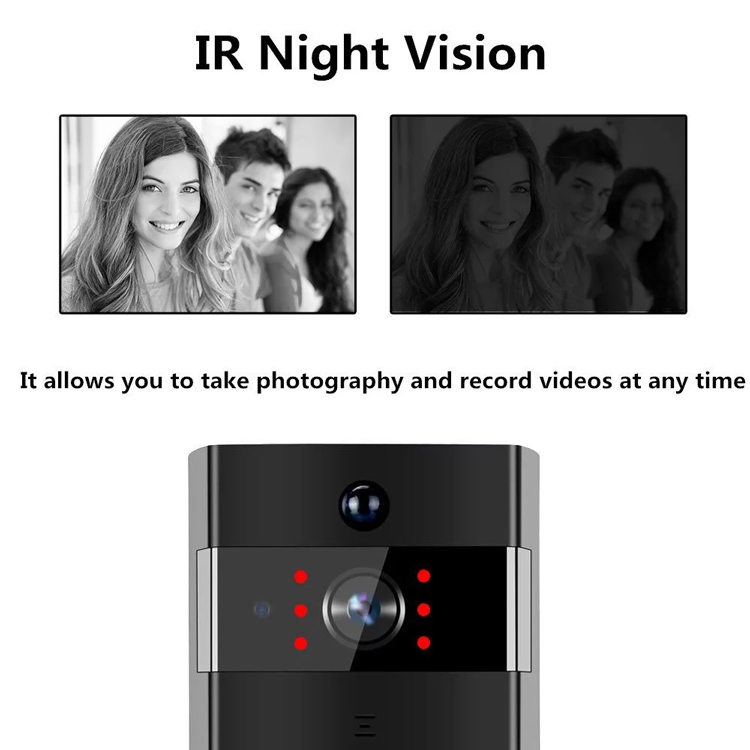

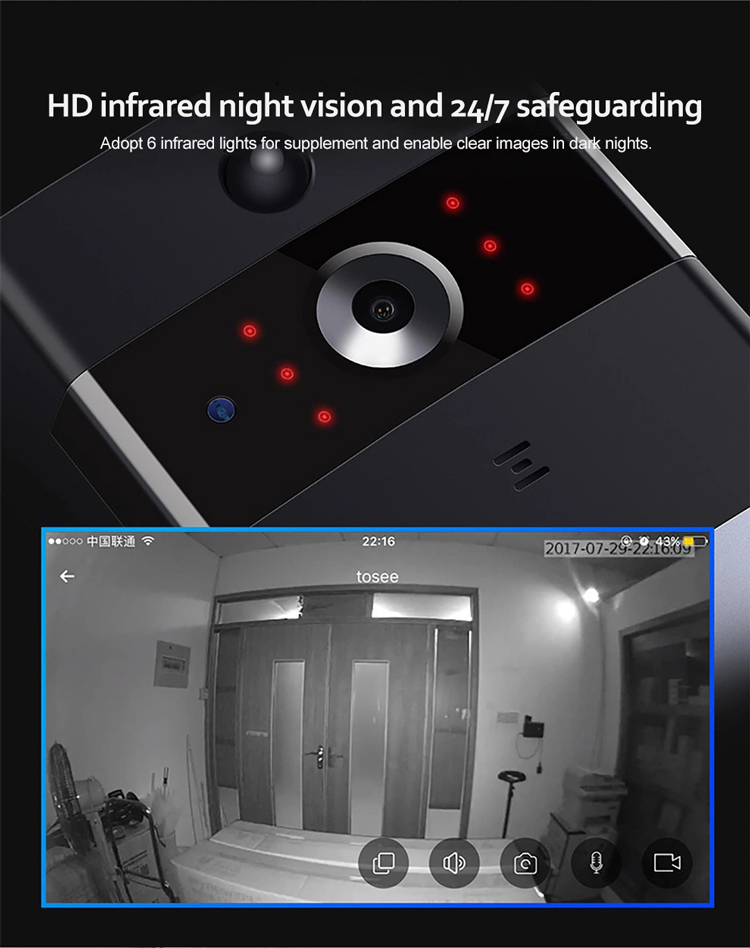

5. IR Night Vision Supported: This doorbell supports night vision with IR technology, you can have a clear
view no matterat day or night. 24 hours monitoring, you will never miss any visitor.

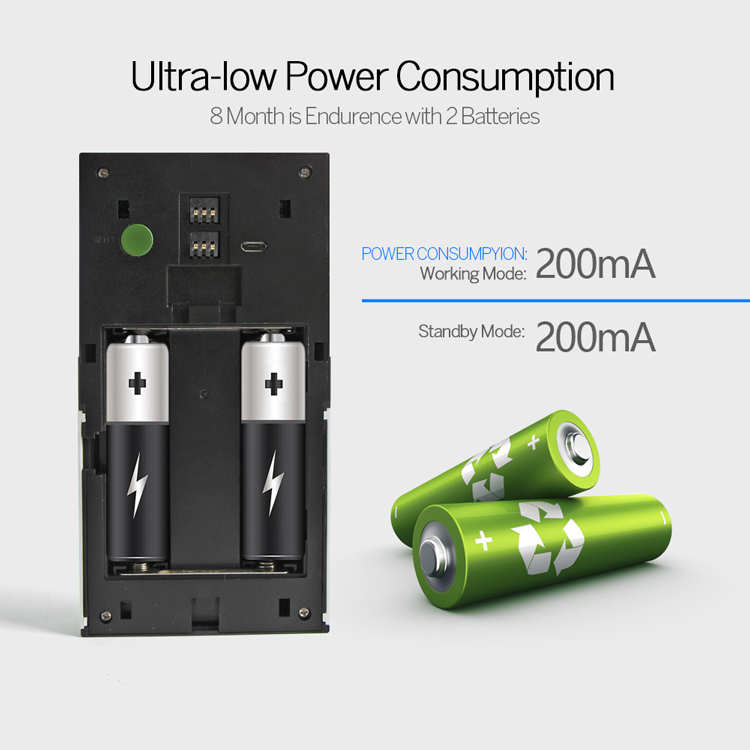

6. Low Power Consumption: This doorbell needs two 18650 batteries (not included), the Li-on battery
features with lowerpower consumption and ultra-long endurance, which can be used for one to three months.

7. PIR Motion Detection: Advanced PIR motion detecting distance is up to 5 meters. Any suspicious motion
will be detectedand it will send alert to your phone. We offer three adjustable sensitive levels, they are lowered
sensitive, moderate sensitiveand high sensitive. You can change sensitive levels according to your demands.

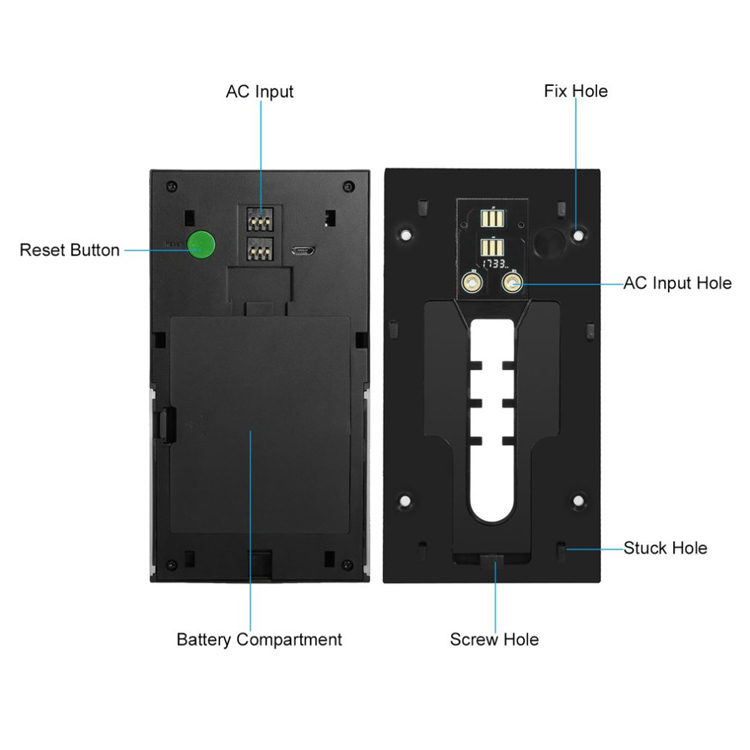

8. Easy Installation: This video doorbell is wireless with no need of cables or lines. What you need to do is to
fit the supporton the wall with the mounting screws, install the batteries and download a APP,
then you can begin using it
Master chip Hi3518E
Sensors 1/4'' 1.0/2.0MP CMOS Sensor
Lens 1.7MM@F1.4, visual angle 166 degrees

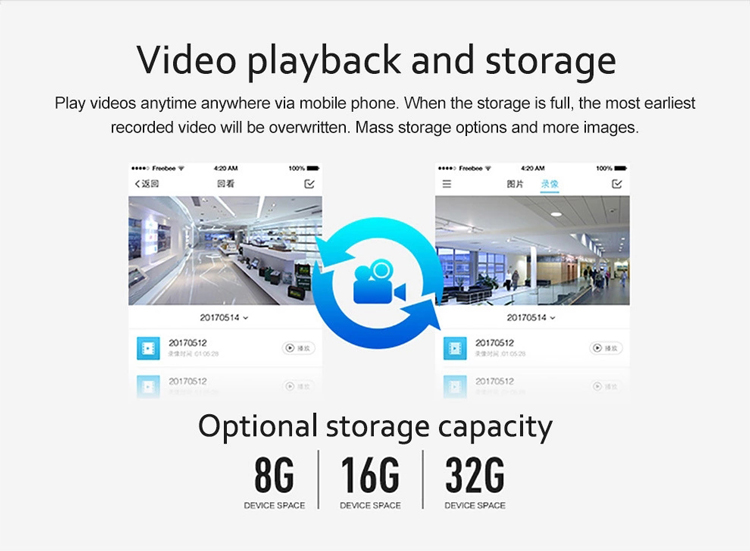

Infrared compensation support TF card (maximum 32G)
Audio built-in pickup, pickup distance 5 meters; built-in speaker, power 1W
Connection mode Wi-Fi (supporting IEEE802.11 b/g/n 2.4 GHz protocol)
Transmission distance 150 meters outdoors and 50 meters indoors (depending on the environment)
Wake-up mode PIR wake-up/button wake-up/cell phone wake-up
Power Supply and Duration 18650 Battery, DC 5V-1A, AC 14-24V AC Power Supply
Power consumption 160uA in dormant state, 200mA@3.7V in working state

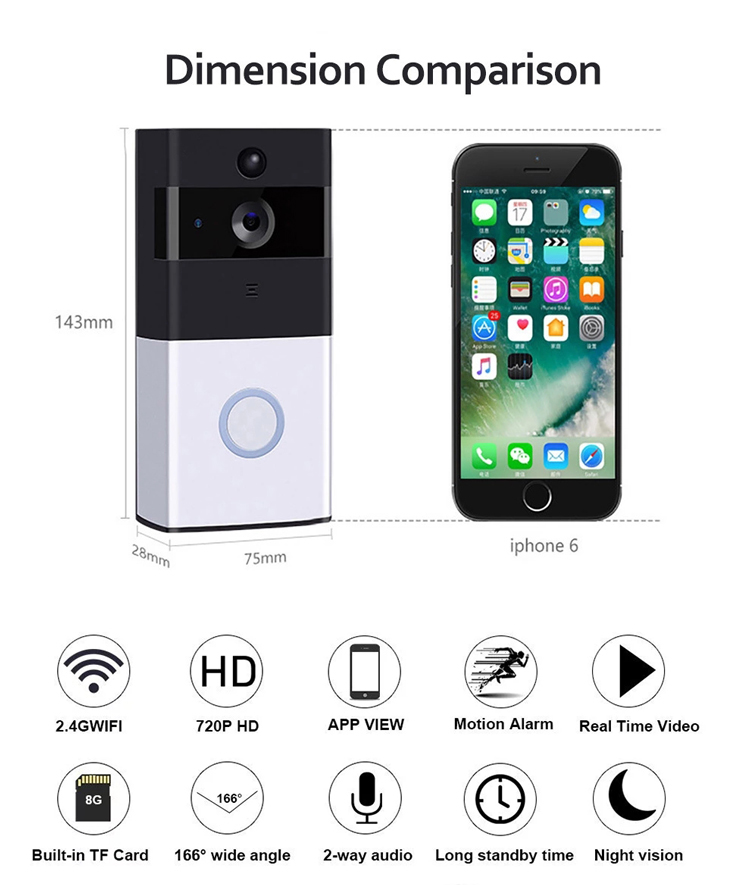

Appearance size 143mm*75mm*32mm
Net weight 184g
Resolution 1920*1080P or  1280*1080P

Next Competitive WIFI doorbell:VD-V30 WIFI Wireless Doorbell
Standard Carton Packing Info
Model Quantity Weight Dimension(cm)
VD-M1 25pcs 12.1KG 54.8×23×46.5(cm)
1set  Packing Info
VD-M1 1set 0.45KG 21×10×9(cm)
