| Image sensor | 1/2.7" CMOS Color sensor 1080P |
| Chipset | XM530Ai+F37 |
| Min.illunimation | 0.1lux /F1.2 |
| Lens | 3.6mm |
| Visual wide angle | 90° |

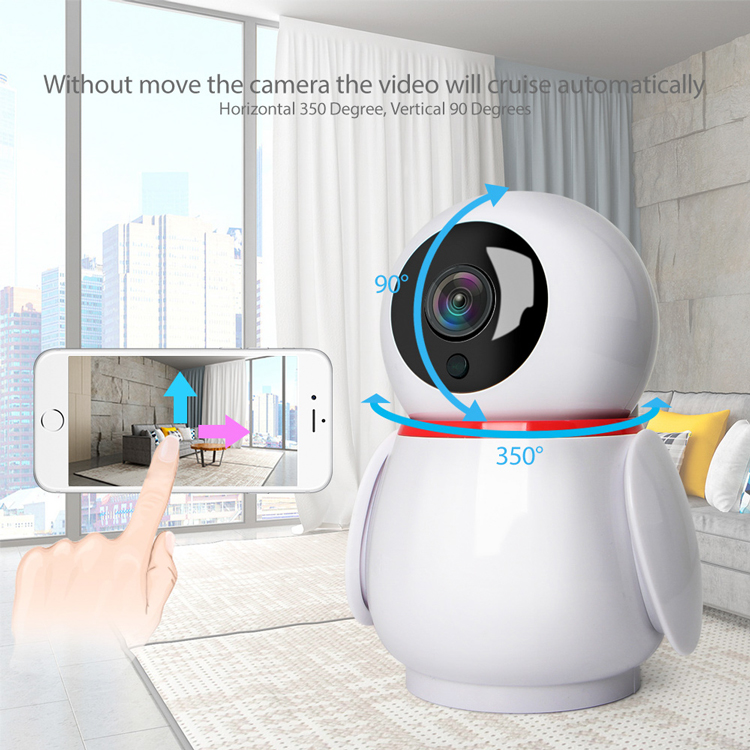

| Vertical rotation | 90° |
| Horizontal rotation | 355° |
| Tracking speed | 3°/S |
| IR LEDS | 6pcs led |
| IR Distance | 5M |
| Night vision | support |
| Day & night | IR -CUT filter auto switch |
| Video compression | H.264 |
| Audio compression | G.711 |
| Bit Rate | 16Kbps-2Mbps |
| Stream | Yes |
| Resolution | 720P(1080*720),VGA(640*480)/1080P(1920*1080),VGA(640*480) |
| Frame rate | 25fps |
| White balance | Auto |
| Image settings | Picture flip,Motion detection |
| Alarm trigger | Motion tracking detection notification |
| Wireless | WIFI .802.11 b/g/n |
| Support mobile system | IOS7 UP , Android 4.0 up |
| Security | User authentication, software encryption |
| APP | Tuya and smart life app |

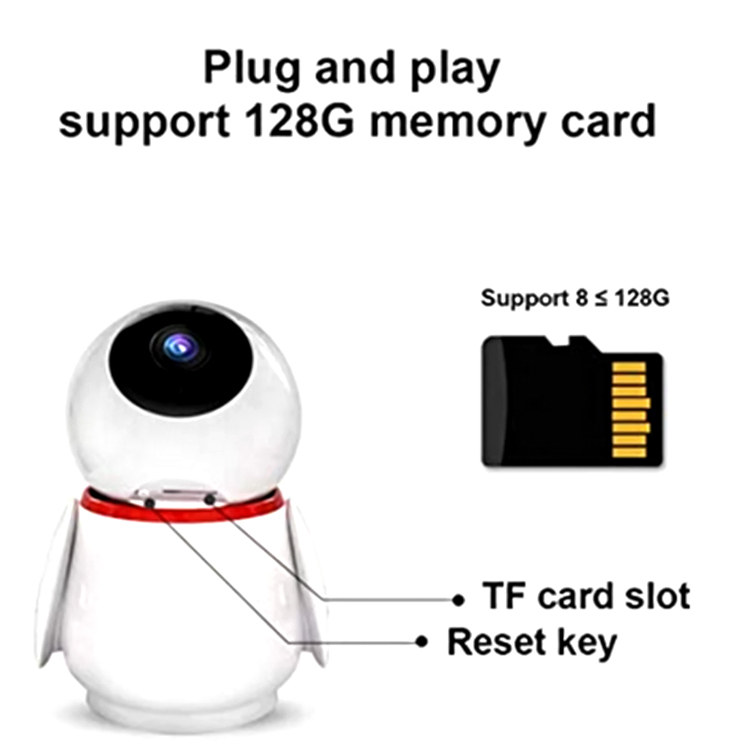

| On board storage | Build in TF Slot support max 128GB |
| Operating temperature | -10°C + 50°C |
| Material | Plastic |
| Ingress Protection | Indoor |
| Power supply | DC5V/1.5A |
| Power consumption | 2-4W                |
| Standard Carton Packing Info | |||
| Model | Quantity | Weight | Dimension(cm) |
| PTZ-24B | 50pcs | 18.5KG | 62×30×52.2(cm) |
| 1set Packing Info | |||

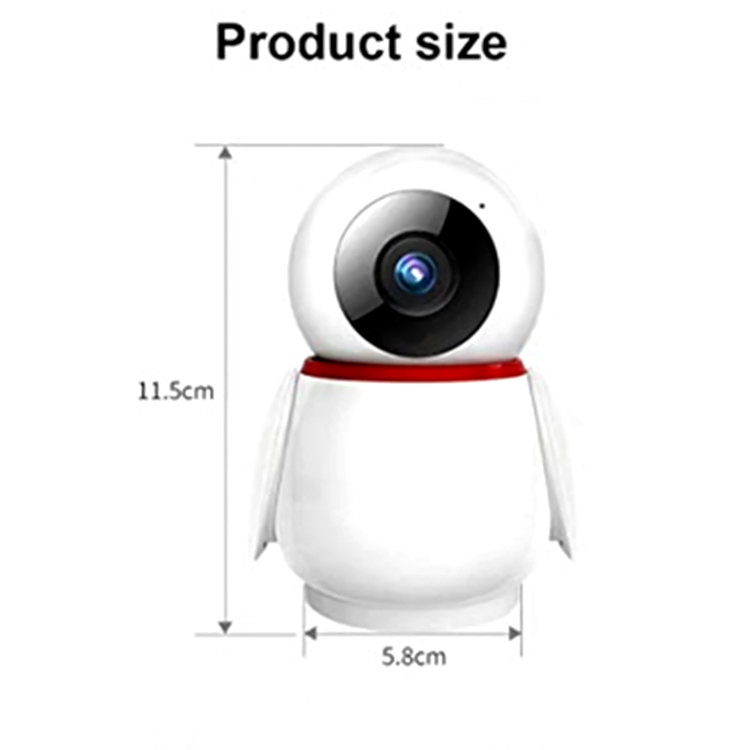

| PTZ-24B | 1set | 0.35KG | 14.6×12.1×10(cm) |
