| Image sensor | 1/4" CMOS |
| Minimum Illumination | 0.5Lux (color mode), 0.1Lux (B&W mode) |
| Lens | 3.6mm |
| Viewing Angle | Horizontal Angle75°; Diagonal Angle 105º |
| IR-CUT | Φ5 6pcs LED lights, Wavelength 850nm ,IR angle 90 ° |
| Distance | IR distance 8m |
| video format | H.264 |
| Resulotion | 1920*1080@ 20FPS |
| Video compression | 32Kbps-6Mbps, can self-defined, default is 4Mbps |
| Audio compression | G.711 |
| Speaker | 1W, 8Ω |
| Microphone | -52dB |
| Pan & Tilt | Horizontal:355°,Vertical:120° |
| Protocal | TCP/IP,UDP,DHCP,P2P and so on |
| Wireless | IEEE 802.11B/G/N |
| Wireless LAN Frequency | 2.4~2.4835GHz |
| Antenna | 2.4GHz 2dBi antenna |
| Micro SD size | 2G/4G/8G/16G/32G/64G/ |
| Format | AVI |
| Input/output | none |
| Alarm notification | Push notification for iPhone/Android APP Upload snapshot and alarm records to TF card (when insert Micro TF card) |
| Power | DC5V 1A |
| Frequency | 50Hz / 60Hz |
| Operating condition | Temperature:-0~50°C,humidity:10%~90% |
| Material | Plastic (ABS) |
| Box | Color box and cartoon,20pcs/carton |
| Dimension | Product size:70*85*110mm (L*W*H) box size: Cartoon size: |
| Weight | Net weight:0.25kg ,Gross weight(including box):0.45kg Cartoon Weight:9kg (only for reference) |
| Accessories | Power adapter, manual, screws, bracket, antenna |
| Os Supported | Android,iOS |
| Certificate | ISO FCC CE |
| Standard Carton Packing Info | |||
| Model | Quantity | Weight | Dimension(cm) |

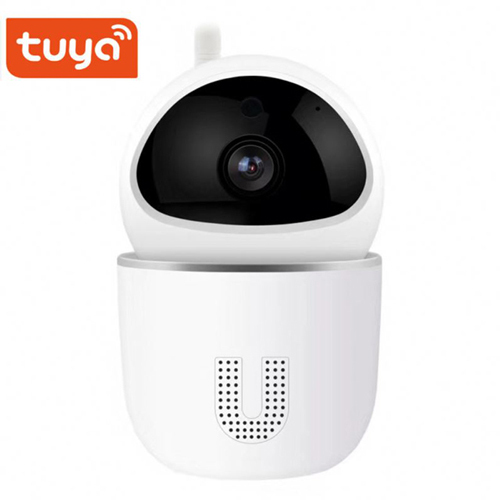

| PTZ-26B | 50pcs | 22KG | 72×39.5×58.5(cm) |
| 1set Packing Info | |||
| PTZ-26B | 1set | 0.42KG | 13.8×11.25×18.9(cm) |
